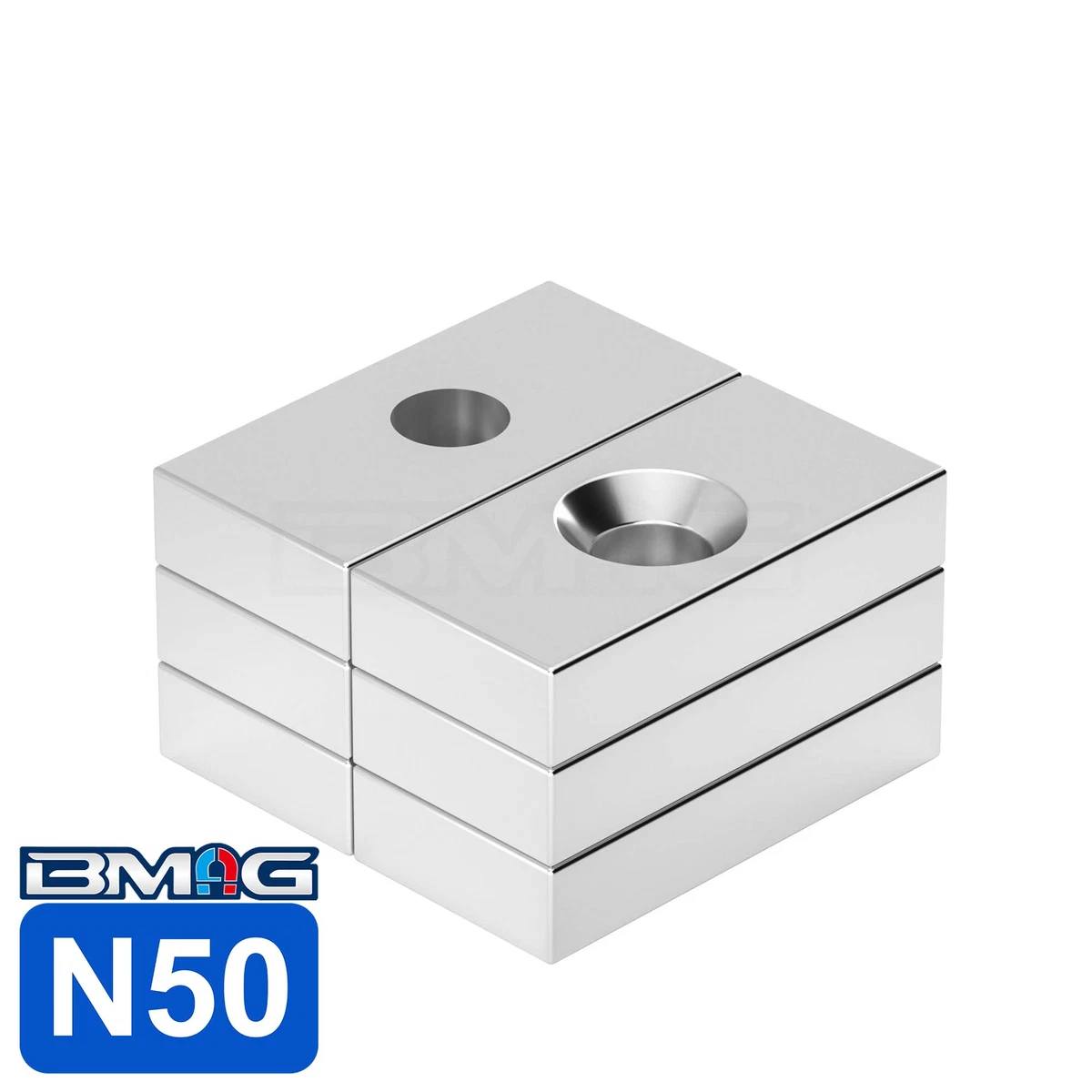

Strong Magnet Block Countersunk N50
| Material | NdFeB |
|---|---|
| Shape | Countersunk |
| Grade | |
| BH Max | 50 MGOe |
| Br Max | 14,500 Gauss |
| Size | Customizable |
Magnet Introduction
The BMAG Strong Magnet Block Countersunk N50 is our most powerful screw-mounted block, offering extreme pull force and anti-rotation stability. The N50 grade provides the ultimate in rare earth energy density. We hold a 0.02mm tolerance on the block’s dimensions and countersink.
BMAG assists customers in testing the tensile force and magnetic field, providing the needed to ensure this N50 block delivers the highest possible holding power for industrial-grade fixtures and specialized architectural hardware where peak strength is the only option.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Strong Magnet Block Countersunk N50 Dimension Diagram
Countersunk Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Countersunk |
| Grade | |
| BH Max | 50 MGOe |
| Br Max | 14,500 Gauss |
| Size | Customizable |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
