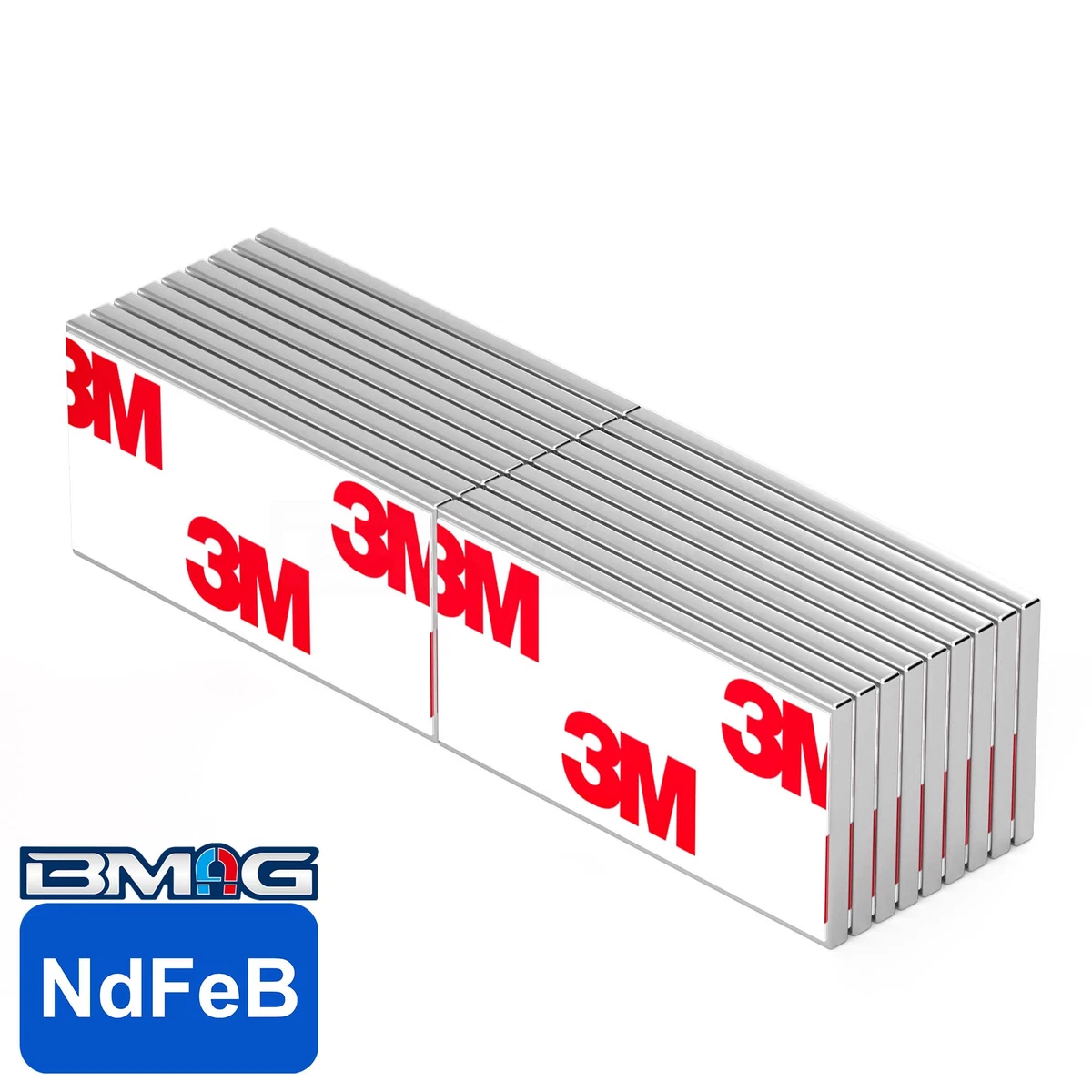

Self-adhesive Rectangular Magnet
| Material | NdFeB |
|---|---|
| Shape | Block |
| Feature | 3M Adhesive |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
Magnet Introduction
The BMAG Self-adhesive Rectangular Magnet provides a tailored geometric solution for specific space constraints. Whether your design requires a square footprint or a narrow rectangle, we provide the exact dimensions needed with a 0.02mm precision tolerance.
The rectangular shape is excellent for maximizing the adhesive bond area in restricted spaces, ensuring that even small magnets can provide a substantial and secure pull force.
We offer these rectangular magnets in performance grades from N28 to N55. BMAG can customize the coating, magnetization direction, and even the adhesive type to match your specific environmental needs.
To ensure your custom solution performs as intended, BMAG can help customers test the magnetic field and tensile force of the finished products. This comprehensive testing ensures that the high BHmax of the neodymium is perfectly balanced with the adhesive’s performance, providing a high-quality magnetic component for any custom application.
Self-adhesive Rectangular Magnet Dimension Diagram
Block Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Block |
| Feature | 3M Adhesive |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
