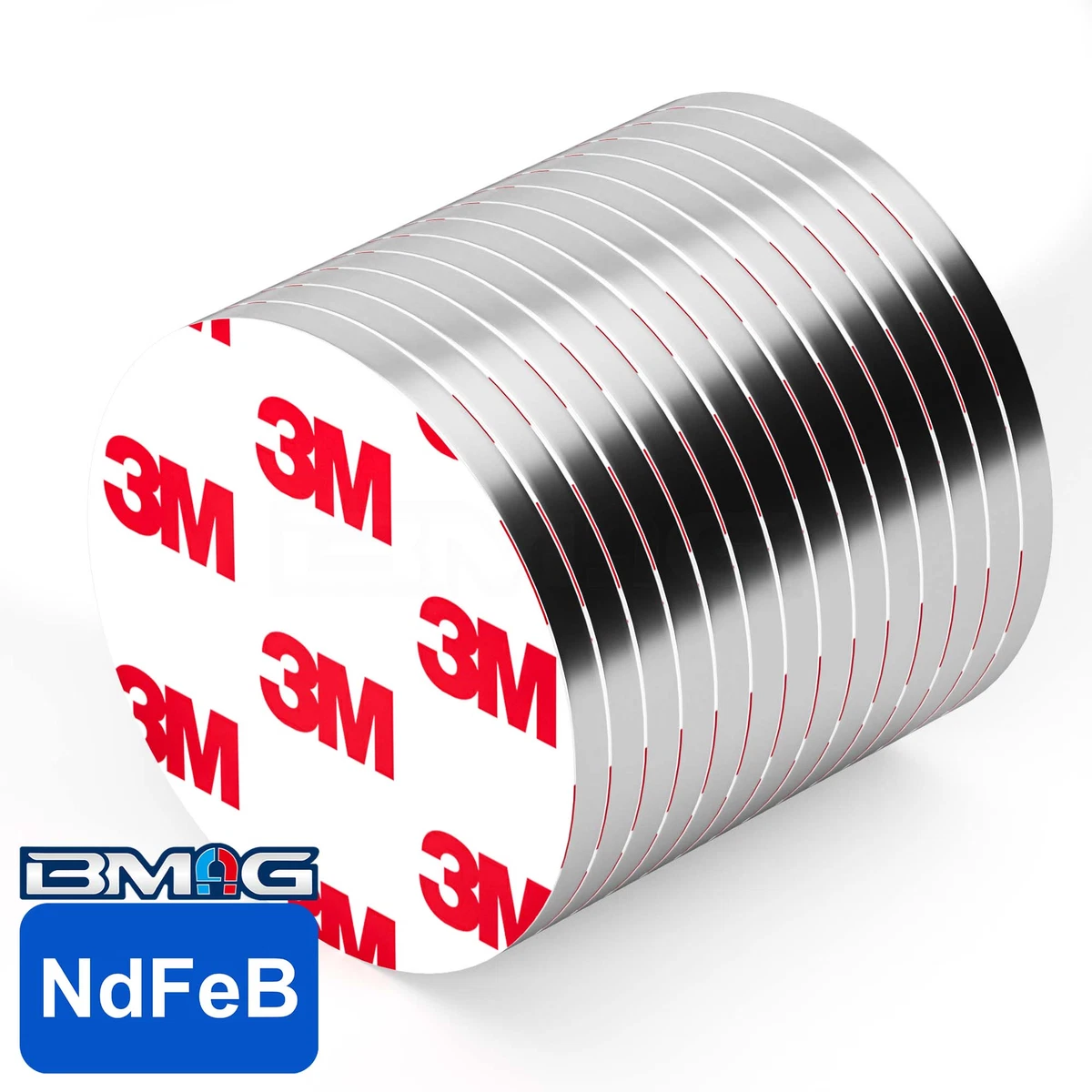

Self-adhesive Disc Magnet
| Material | NdFeB |
|---|---|
| Shape | Disc |
| Feature | 3M Adhesive |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
Magnet Introduction
BMAG Self-adhesive Disc Magnets are high-performance, button-style magnets designed for low-profile applications. These thin discs are nearly invisible once installed, yet they provide the intense Br and BHmax associated with premium neodymium.
By adhering to a 0.02mm precision tolerance, we ensure that these discs have perfectly parallel faces, which is essential for maintaining a strong and consistent adhesive bond across the entire surface area.
Available in a wide range of grades (N28-N55), our disc magnets can be customized with various coatings to ensure the adhesive stays bonded for years. BMAG provides “matched sets” for folding closures where North and South discs must align perfectly.
To support your engineering goals, BMAG can help customers test the magnetic flux and tensile force of the finished discs, ensuring that the self-adhesive bond is capable of handling the magnet’s high-strength pull.
Self-adhesive Disc Magnet Dimension Diagram
Disc Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Disc |
| Feature | 3M Adhesive |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
