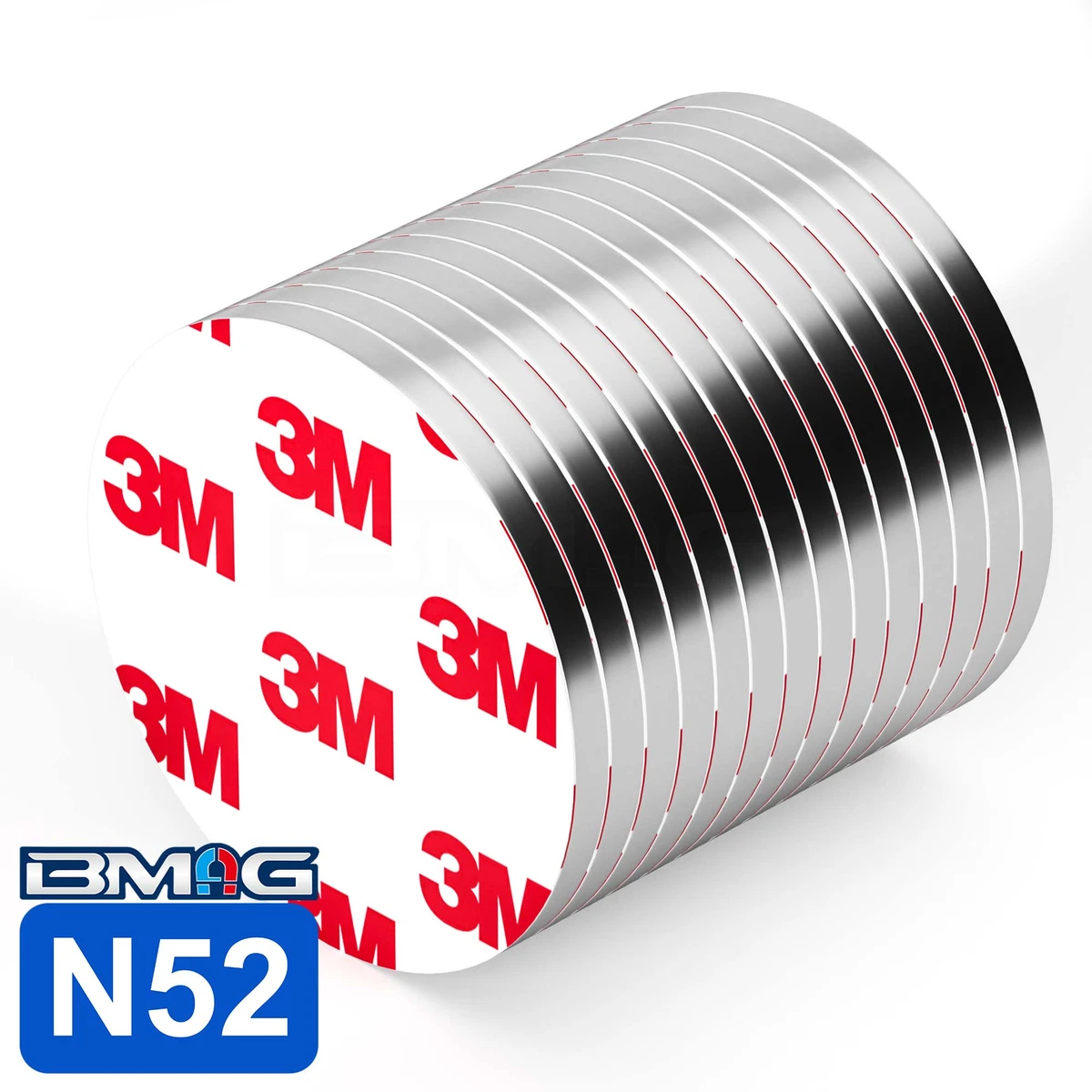

Self-adhesive Disc Magnet N52
| Material | NdFeB |
|---|---|
| Shape | Disc |
| Feature | 3M Adhesive |
| Grade | |
| BH Max | 52 MGOe |
| Br Max | 14,800 Gauss |
| Size | Customizable |
Magnet Introduction
Self-adhesive Disc Magnet N52 The BMAG Self-adhesive Disc Magnet N52 combines top-tier rare earth power with the convenience of a “peel-and-stick” solution. The N52 core provides a strong “snap” for premium closures and hidden attachments.
We maintain a flat surface with a 0.02mm tolerance to ensure the adhesive bond is permanent and secure. BMAG assists in testing the tensile force and magnetic field, ensuring the high-energy N52 material is perfectly balanced with the adhesive’s shear strength, providing a high-performance mounting solution that lasts.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Self-adhesive Disc Magnet N52 Dimension Diagram
Disc Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Disc |
| Feature | 3M Adhesive |
| Grade | |
| BH Max | 52 MGOe |
| Br Max | 14,800 Gauss |
| Size | Customizable |
