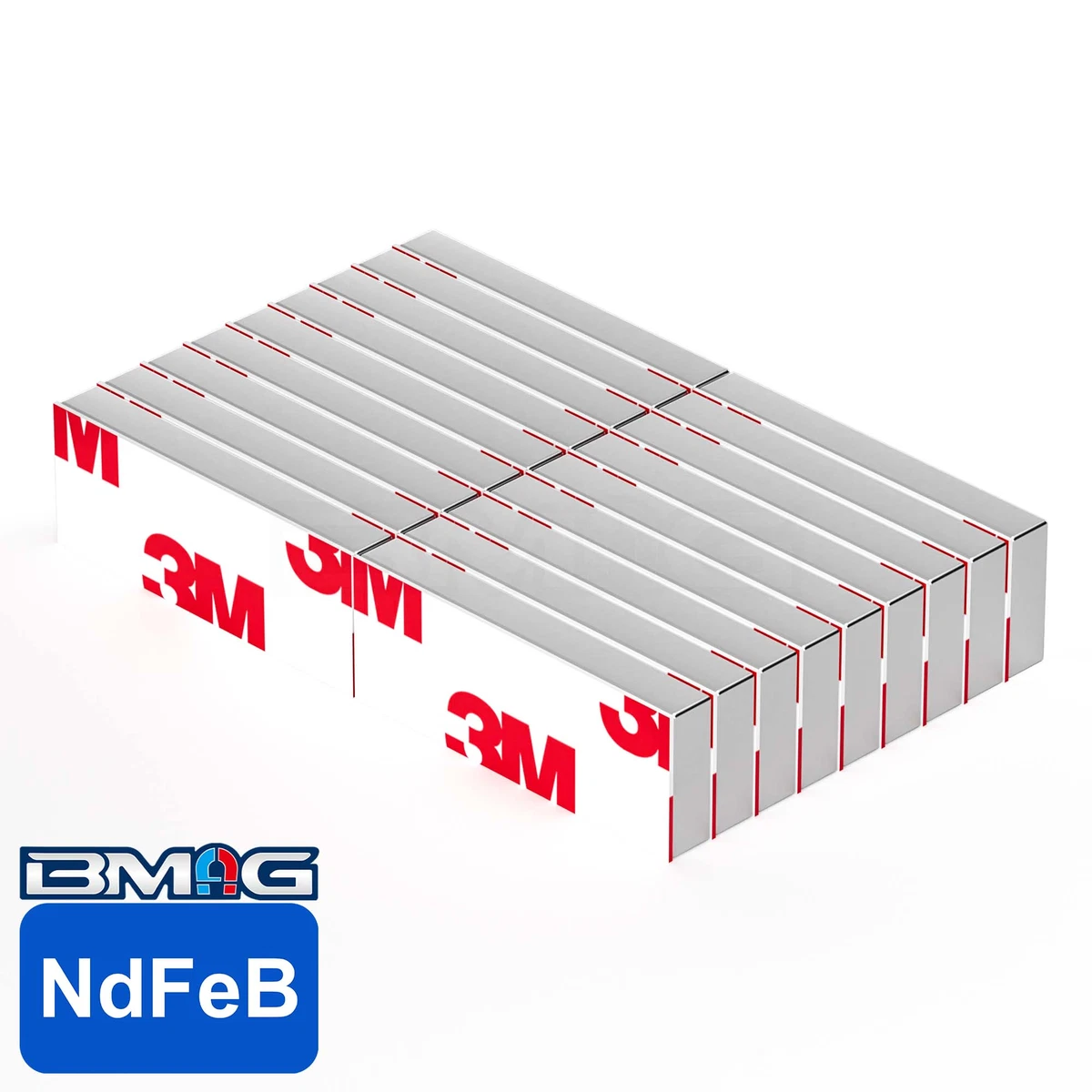

Self-adhesive Bar Magnet
| Material | NdFeB |
|---|---|
| Shape | Block |
| Feature | 3M Adhesive |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
Magnet Introduction
The BMAG Self-adhesive Bar Magnet offers an elongated magnetic field that is perfect for door seals, magnetic tool tracks, and linear sensor arrays.
The long, narrow profile allows for significant holding power over a greater distance. BMAG’s precision grinding ensures a 0.02mm tolerance along the entire length of the bar, preventing “bowing” and ensuring the adhesive backing makes full contact with the substrate for a permanent and reliable bond.
Our bar magnets are available in custom lengths and grades up to N55. We can customize the magnetization direction—whether you need it through the thickness or across the width. To ensure the bars meet your project’s high standards, BMAG can help customers test the magnetic flux and tensile force along the length of the bar.
This ensures that the Br and Hcj values are consistent, providing a smooth and powerful magnetic interface for your assembly.
Self-adhesive Bar Magnet Dimension Diagram
Block Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Block |
| Feature | 3M Adhesive |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
