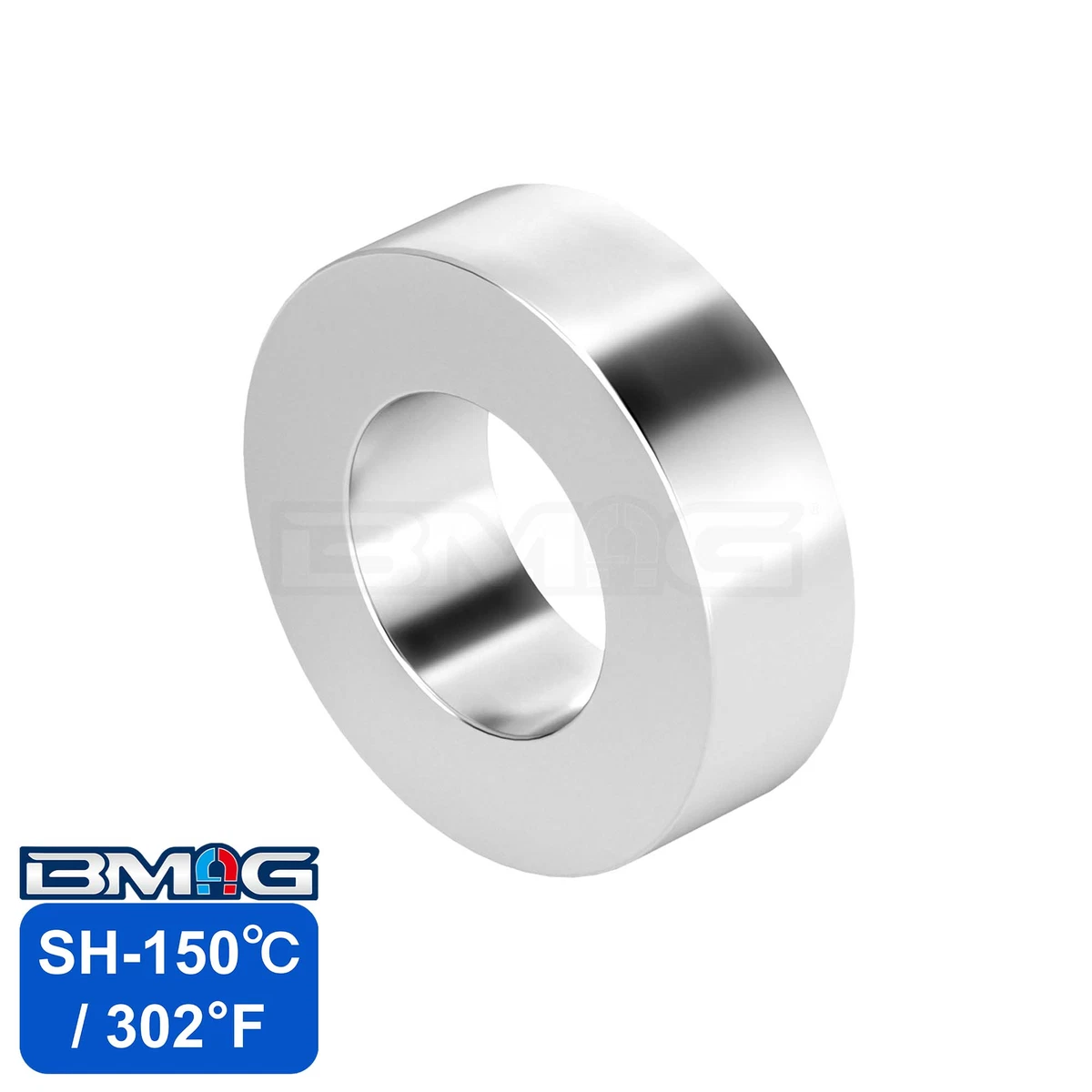

Neodymium Ring Magnet SH-150℃
| Material | NdFeB |
|---|---|
| Shape | Ring |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Magnet Introduction
The BMAG Neodymium Ring Magnet SH provides symmetrical magnetic flux for rotational applications in 150℃ / 302°F settings. The SH grade ensures reliable performance and high energy density. We maintain a strict 0.02mm tolerance on the ID and OD to prevent mechanical imbalance during rotation.
BMAG can help customers test the magnetic flux and magnetic field intensity, ensuring that the SH ring delivers the precise magnetic moment required for precision magnetic bearings and actuators in thermal environments.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Neodymium Ring Magnet SH Dimension Diagram
Ring Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Ring |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
