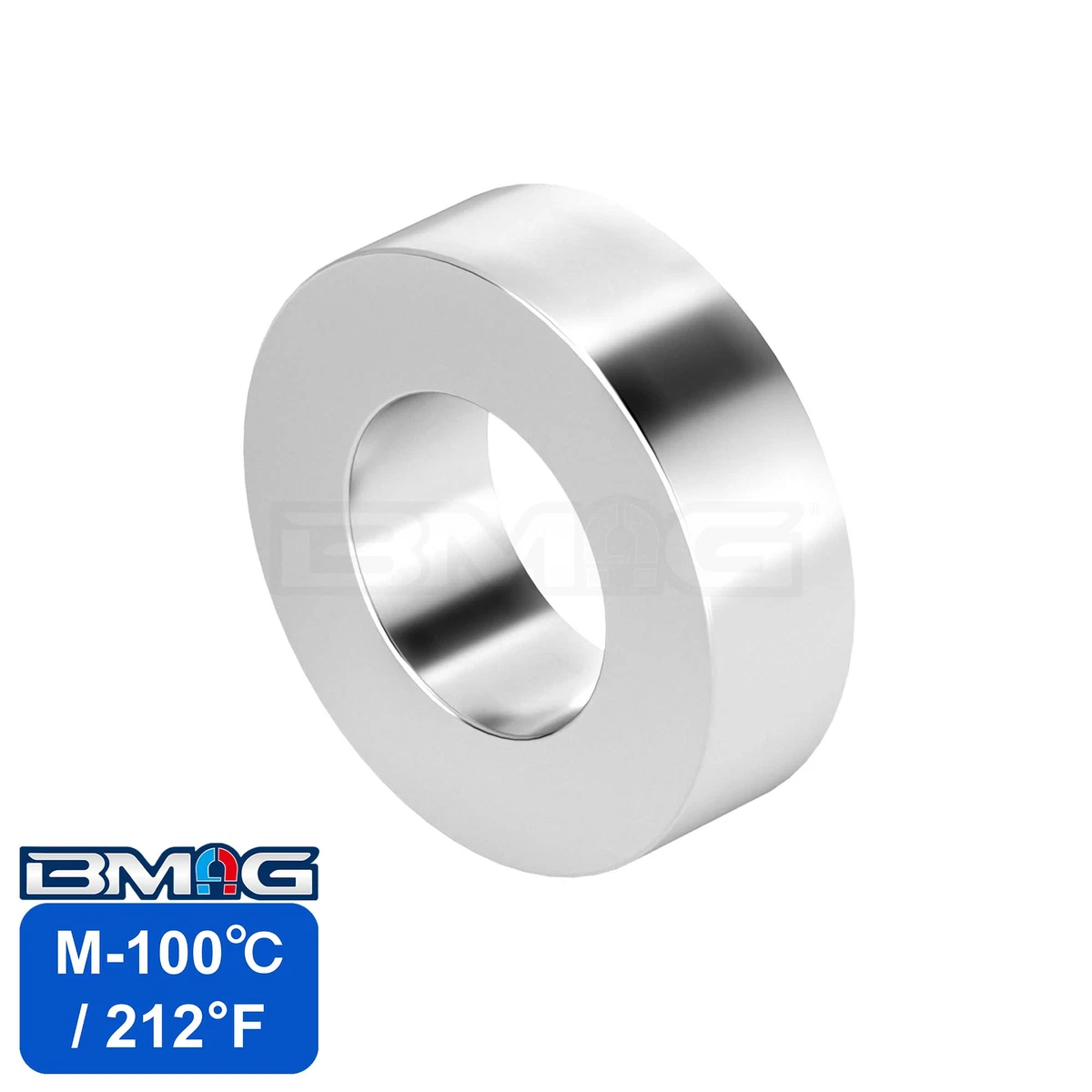

Neodymium Ring Magnet M-100℃
| Material | NdFeB |
|---|---|
| Shape | Ring |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Magnet Introduction
The BMAG Neodymium Ring Magnet M provides symmetrical magnetic flux for rotational and axial applications in 100°C settings. The M grade ensures structural stability and high energy density. We maintain a strict 0.02mm tolerance on the ID and OD to ensure mechanical precision.
BMAG can help customers test the magnetic flux and magnetic field, ensuring that the M material provides a stable and powerful field for high-precision magnetic bearings and rotational sensors.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Neodymium Ring Magnet M Dimension Diagram
Ring Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Ring |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
