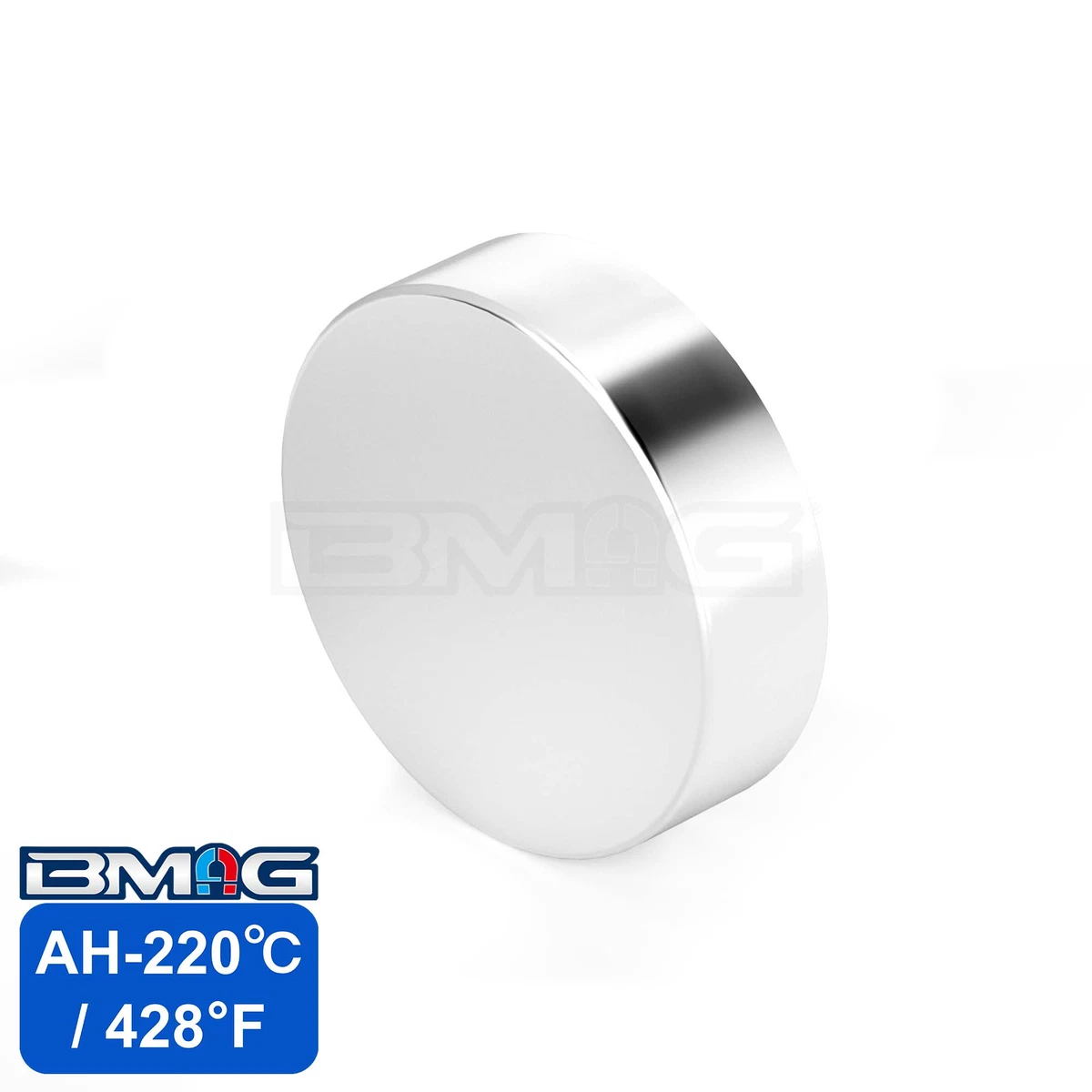

Neodymium Disc Magnet AH-220℃
| Material | NdFeB |
|---|---|
| Shape | Disc |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Magnet Introduction
Our Neodymium Disc Magnet AH provides a compact, high-energy magnetic solution for electronics and triggers exposed to 220℃ / 428°F. The AH grade ensures that the disc maintains its magnetic moment without significant reversible loss.
BMAG holds a 0.02mm precision tolerance on all dimensions for seamless integration into high-temperature housings. We can help customers test the magnetic flux, providing the technical validation needed to ensure these discs provide the consistent sensitivity required for high-performance thermal sensors and specialized medical equipment.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Neodymium Disc Magnet AH Dimension Diagram
Disc Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Disc |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
