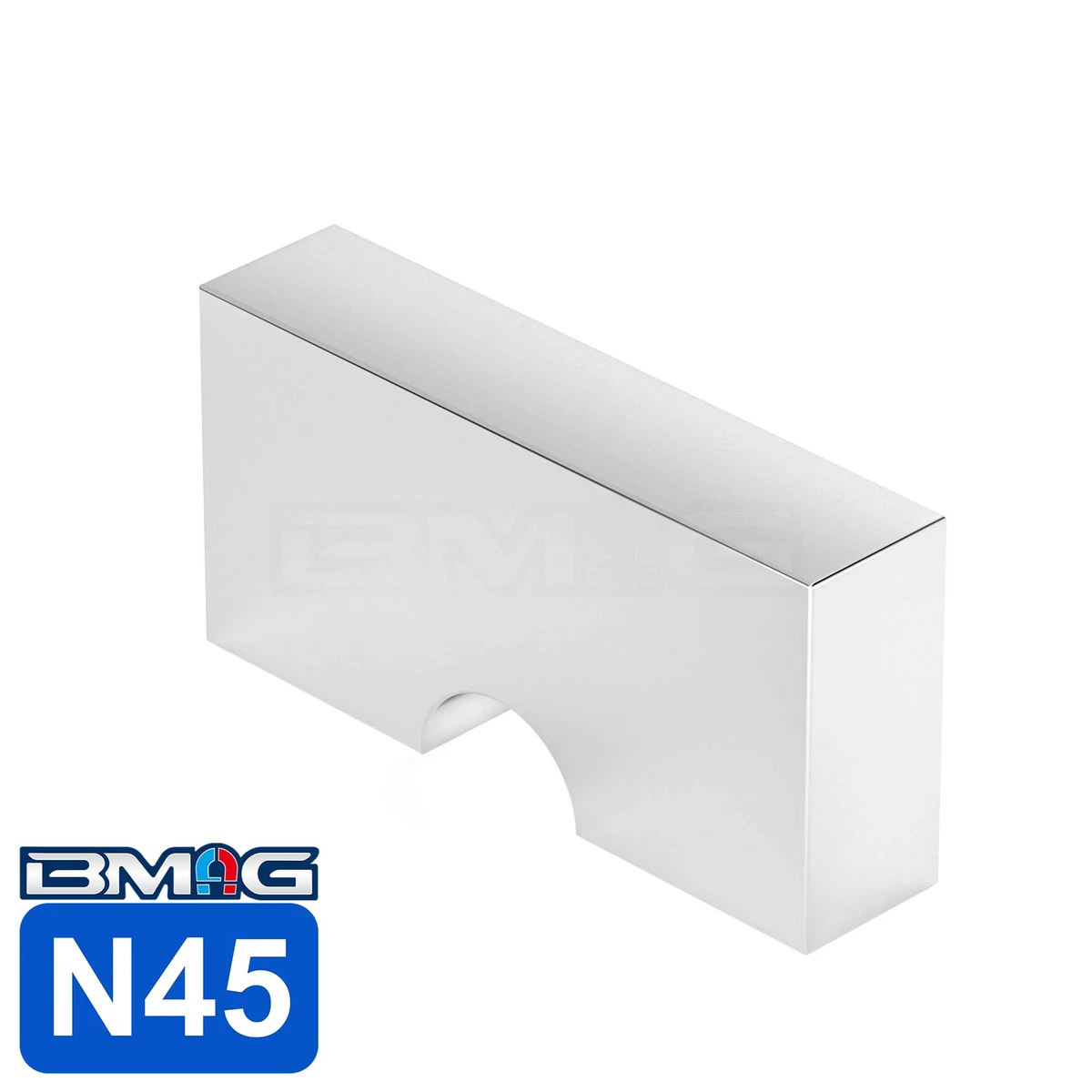

Custom Shaped Neodymium Magnet N45
| Shape | Custom |
|---|---|
| Grade | |
| BH Max | 45 MGOe |
| Br Max | 13,800 Gauss |
| Temperature | |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
Magnet Introduction
The BMAG Custom Shaped Neodymium Magnet N45 is designed for irregular geometries that require high magnetic energy. From stepped blocks to concave segments, we use advanced CNC grinding to achieve complex shapes with a 0.02mm tolerance.
The N45 grade provides the high BHmax needed for compact, high-performance designs. BMAG assists customers in testing the magnetic field and magnetic flux, ensuring that the unique shape does not compromise the magnet’s strength or orientation, providing a truly bespoke solution for your engineering challenges.
Custom Shaped Neodymium Magnet N45 Dimension Diagram
Custom Magnet Magnetization Direction
Magnet Specification
| Shape | Custom |
|---|---|
| Grade | |
| BH Max | 45 MGOe |
| Br Max | 13,800 Gauss |
| Temperature | |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
