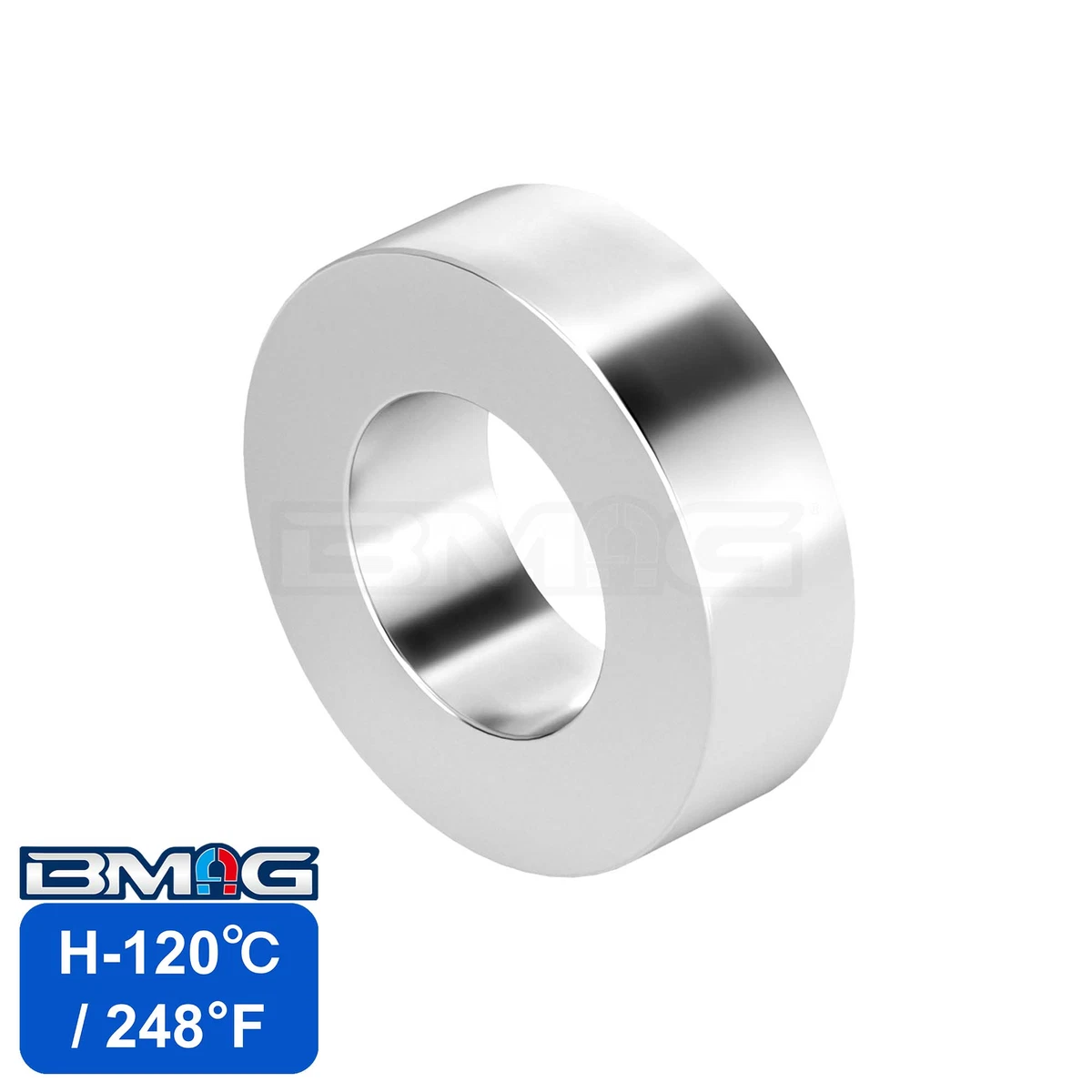

Neodymium Ring Magnet H-120℃
| Material | NdFeB |
|---|---|
| Shape | Ring |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Magnet Introduction
The BMAG Neodymium Ring Magnet H provides symmetrical flux for rotational applications in 120℃ / 248°F environments. The H grade ensure stability and high energy density. We maintain a strict 0.02mm tolerance on the ID and OD to ensure mechanical precision in high-tolerance assemblies.
BMAG can help customers test the magnetic flux and magnetic field intensity, guaranteeing that the H material provides a stable and powerful field for precision magnetic bearings and rotational sensors.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Neodymium Ring Magnet M Dimension Diagram
Ring Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Ring |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
