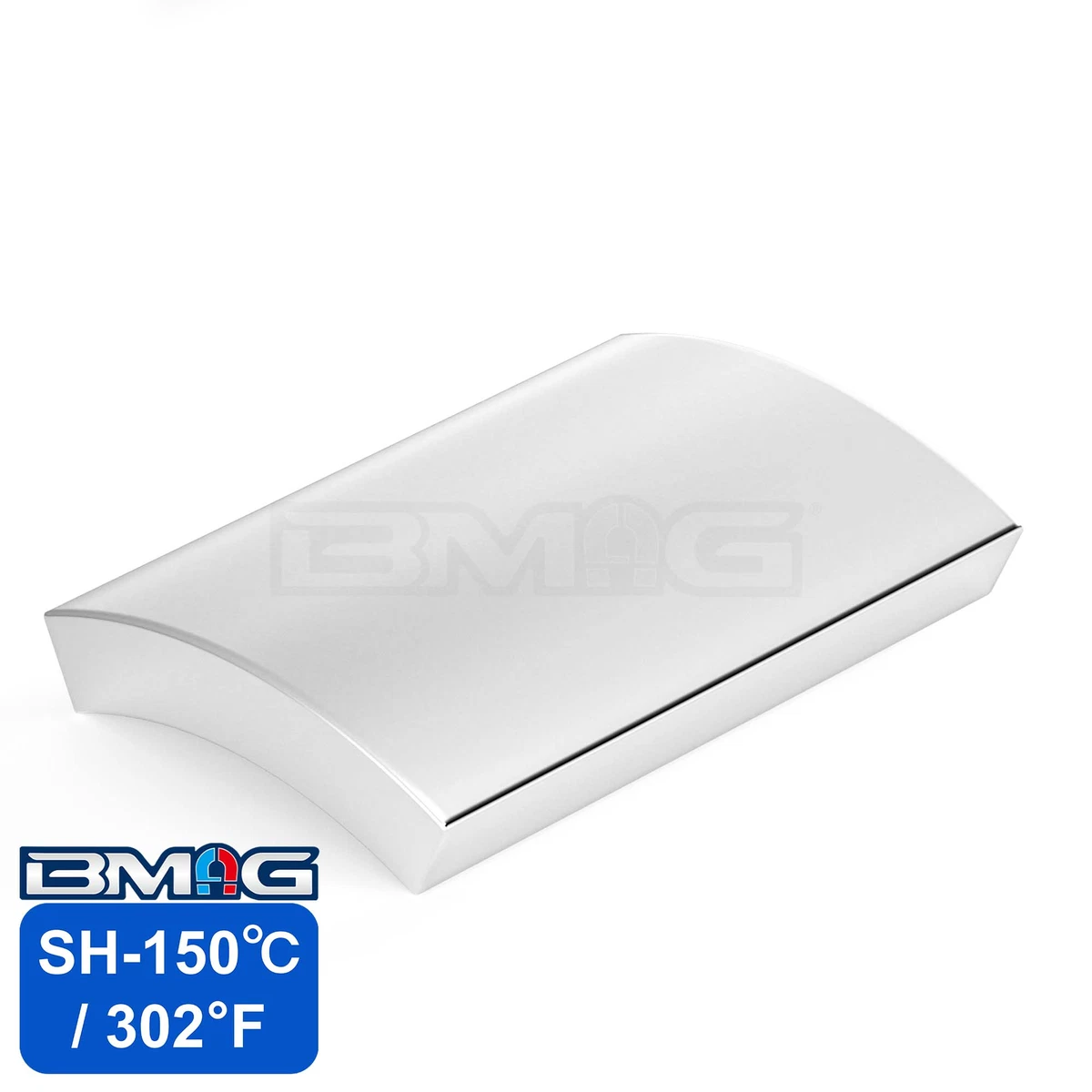

Neodymium Arc Magnet SH-150℃
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Magnet Introduction
The BMAG Neodymium Arc Magnet SH is designed for efficient electric motors and rotors operating at 150℃ / 302°F. The SH grade provides high remanence and coercive force, ensuring peak motor output. We maintain a 0.02mm tolerance on the arc’s geometry to minimize the magnetic air gap.
BMAG can help customers test the magnetic flux and magnetic field distribution, ensuring these SH arcs provide a uniform field, which is essential for reducing torque ripple and increasing power efficiency in high-performance rotors.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Neodymium Arc Magnet SH Dimension Diagram
Arc Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
