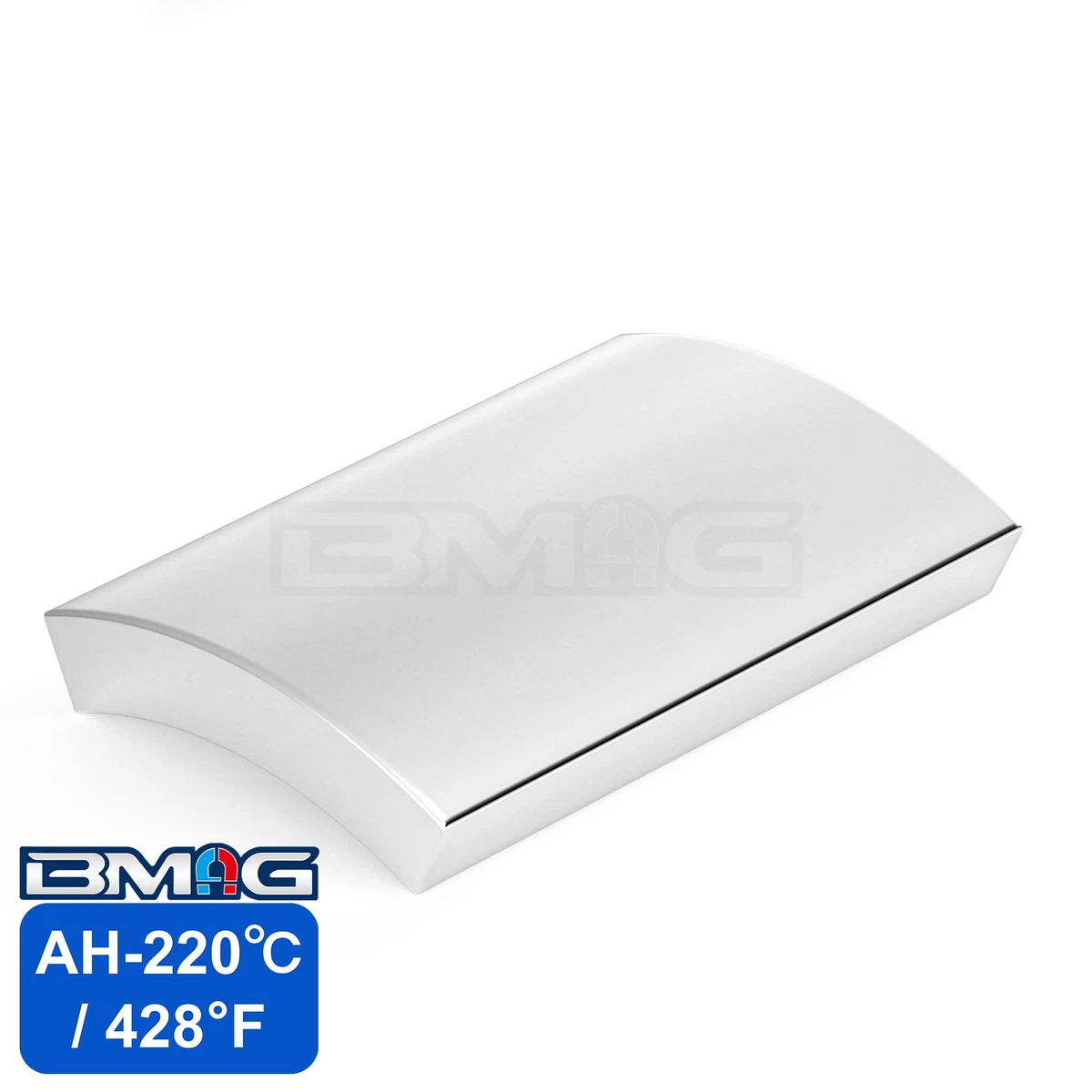

Neodymium Arc Magnet AH-220℃
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Magnet Introduction
The BMAG Neodymium Arc Magnet AH is the premier choice for ultra-high-performance motors that generate significant internal heat, maintaining stability at 220℃ / 428°F. We maintain a 0.02mm tolerance on the arc’s geometry to ensure the minimal air gap necessary for peak motor efficiency.
BMAG assists in testing the magnetic field distribution and flux, ensuring that the AH grade provides a balanced and powerful rotor field. This level of precision is essential for preventing power loss in specialized automotive and aerospace motors operating at high thermal limits.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Neodymium Arc Magnet AH Dimension Diagram
Arc Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
