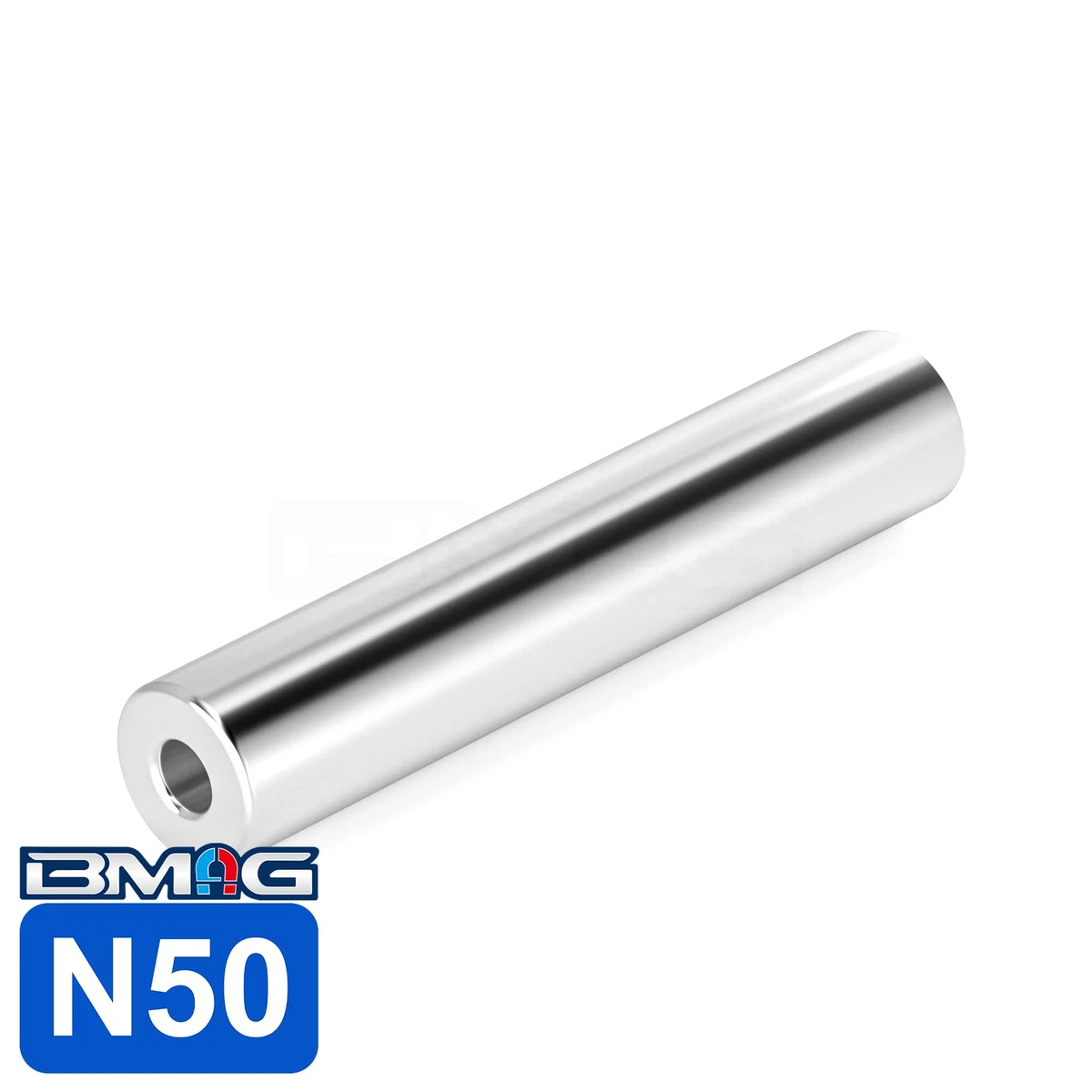

NdFeB Tube Magnet N50
| Material | NdFeB |
|---|---|
| Shape | Ring |
| Grade | |
| BH Max | 50 MGOe |
| Br Max | 14,500 Gauss |
| Size | Customizable |
Magnet Introduction
The BMAG NdFeB Tube Magnet N50 is a specialized high-energy hollow cylinder for the most demanding sensor and actuator applications. The N50 grade provides a massive magnetic flux within its cylindrical walls. We maintain a 0.02mm tolerance on the ID and OD to ensure mechanical precision in high-tolerance assemblies.
BMAG assists customers in testing the magnetic flux and magnetic field, ensuring that the N50 material provides an intense and unwavering field along the tube’s axis, providing a top-tier magnetic conduit for advanced scientific and industrial instruments.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
NdFeB Tube Magnet N50 Dimension Diagram
Tube Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Ring |
| Grade | |
| BH Max | 50 MGOe |
| Br Max | 14,500 Gauss |
| Size | Customizable |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
