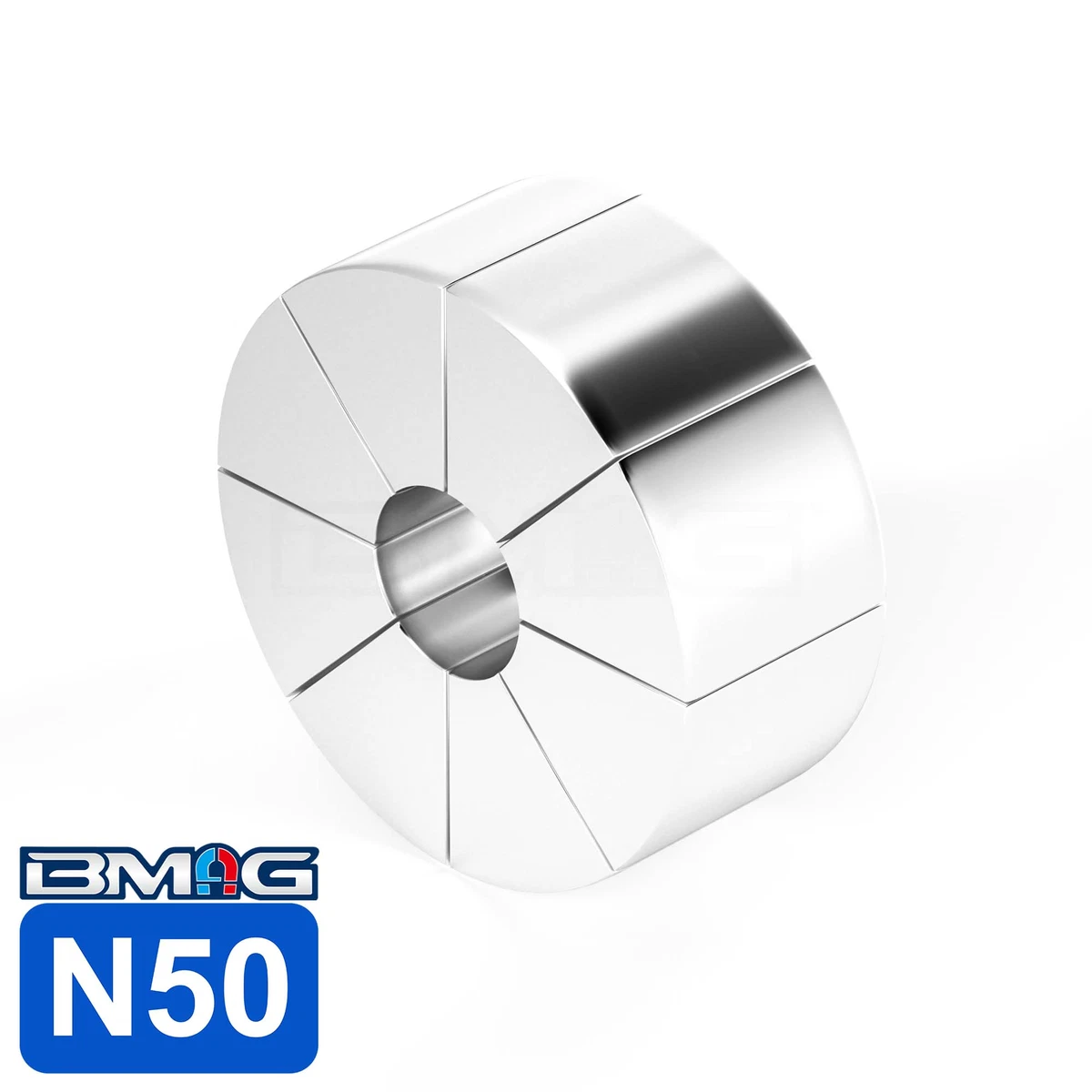

NdFeB Arc Magnet N50
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Grade | |
| BH Max | 50 MGOe |
| Br Max | 14,500 Gauss |
| Size | Customizable |
Product Description
Magnet Introduction
Designed for peak motor performance, the BMAG NdFeB Arc Magnet N50 provides the highest possible torque density for electric motors. The N50 grade delivers extreme Br and BHmax, allowing for radical motor downsizing without power loss. We maintain a 0.02mm tolerance on the curvature for a perfect fit.
BMAG helps customers test the magnetic flux and magnetic field distribution, ensuring these N50 arcs provide an intense and uniform field, making them the standard for elite racing drones, performance EVs, and high-precision robotics.
NdFeB Arc Magnet N50 Dimension Diagram
Arc Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Grade | |
| BH Max | 50 MGOe |
| Br Max | 14,500 Gauss |
| Size | Customizable |
Magnet Calculator
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
