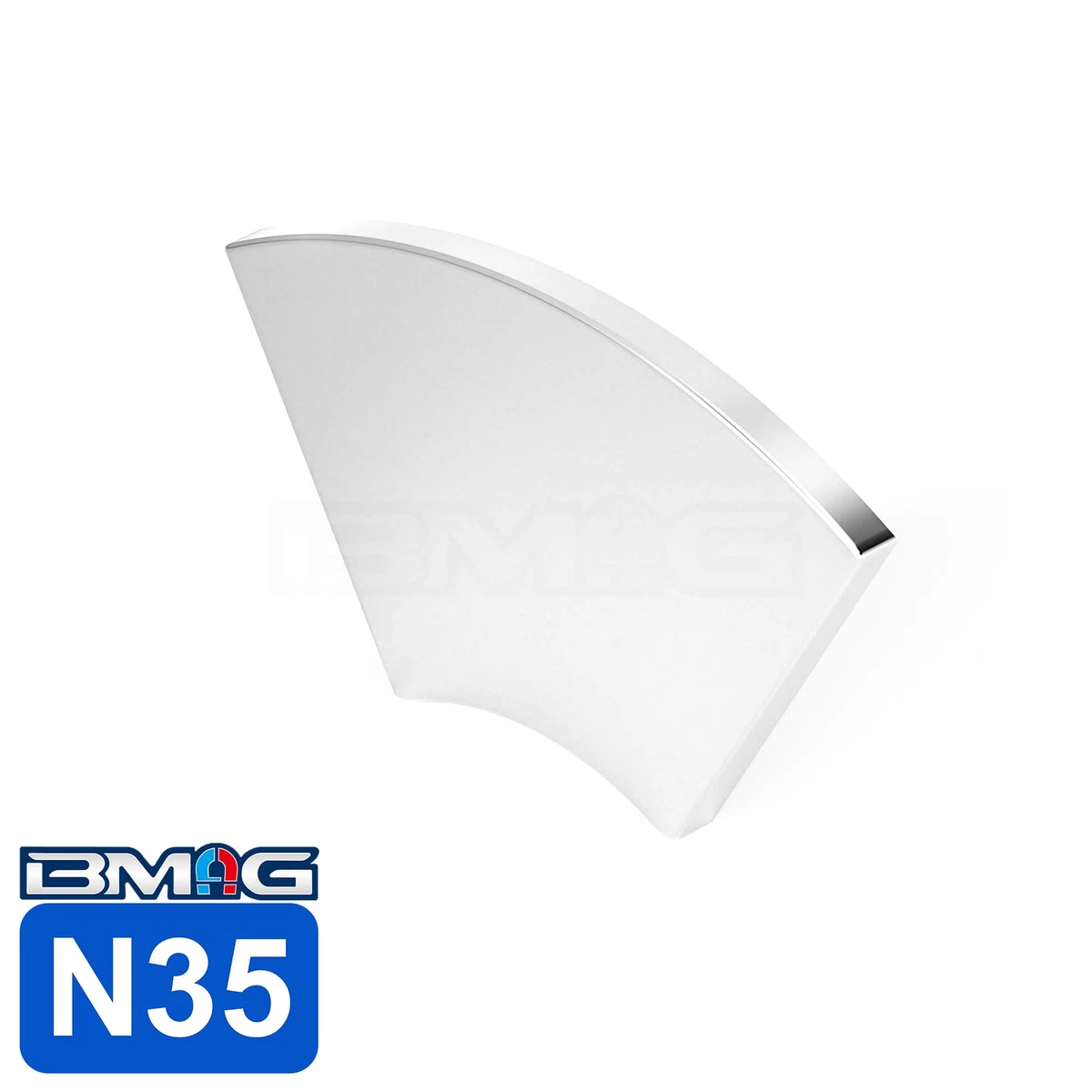

NdFeB Arc Magnet N35
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Grade | |
| BH Max | 35 MGOe |
| Br Max | 12,200 Gauss |
| Size | Customizable |
Magnet Introduction
Our BMAG NdFeB Arc Magnet N35 is specifically designed for integration into small motors and generators. The arc geometry is precision-ground to ensure the inner and outer radii maintain perfect concentricity. By utilizing the N35 grade, we provide a stable BHmax for cost-sensitive rotational assemblies.
BMAG offers comprehensive testing services, including magnetic flux and magnetic field verification, ensuring that the arc’s magnetic orientation is perfectly aligned. This precision reduces vibration and enhances the overall efficiency of your electromagnetic circuit.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
NdFeB Arc Magnet N35 Dimension Diagram
Arc Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Grade | |
| BH Max | 35 MGOe |
| Br Max | 12,200 Gauss |
| Size | Customizable |
