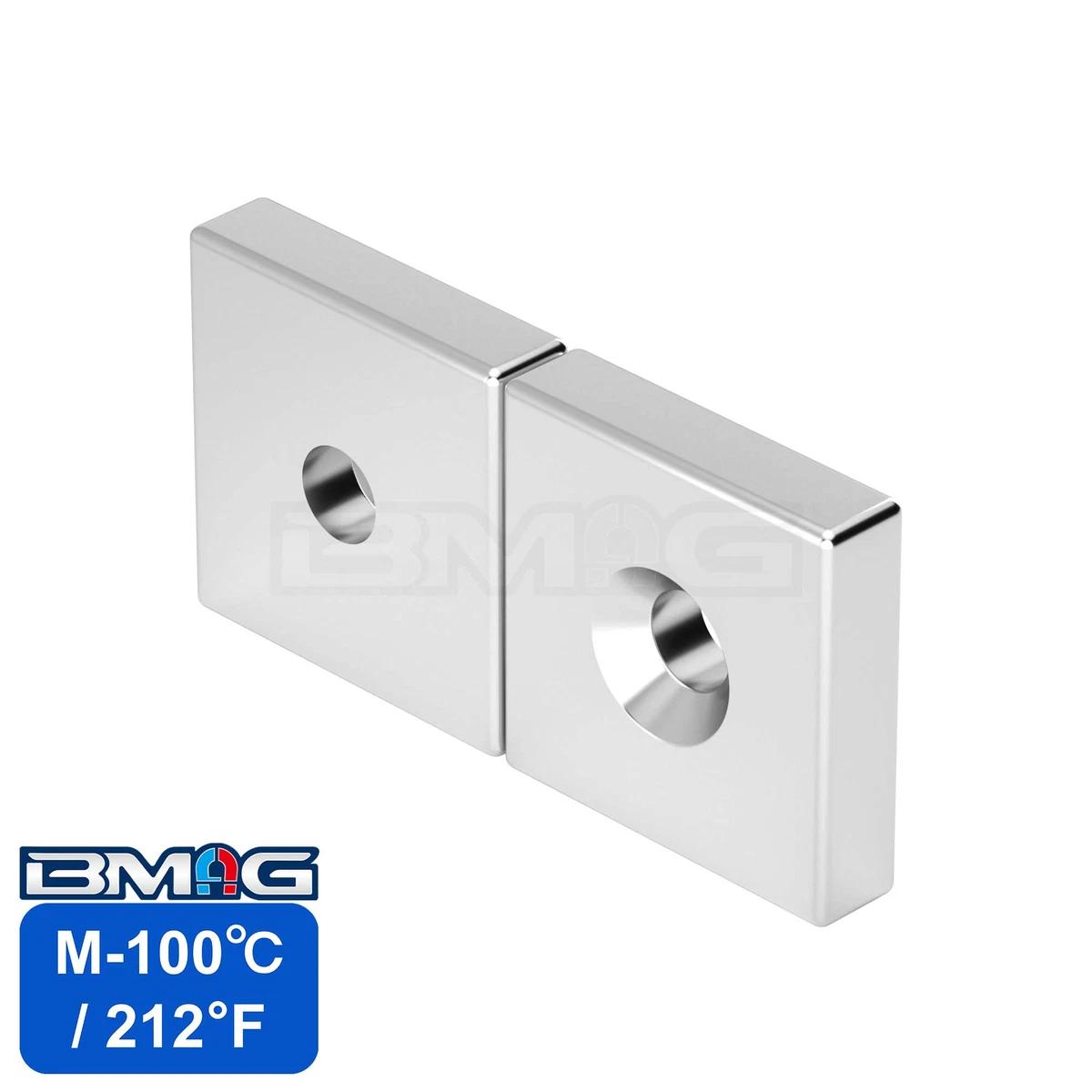

Countersunk Magnet M-100℃
| Material | NdFeB |
|---|---|
| Shape | Countersunk |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Magnet Introduction
Our Countersunk Magnet M is a versatile screw-on magnet designed for mounting fixtures exposed to temperatures reaching 100°C. The M-grade material offers reliable thermal stability for signage and industrial doors. BMAG ensures every unit is ground to a 0.02mm tolerance for a professional flush finish. We assist customers in testing the tensile force and magnetic flux, confirming that your countersunk M magnets provide the secure and permanent pull needed for your specific hardware and mounting requirements.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Countersunk Magnet M Dimension Diagram
Countersunk Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Countersunk |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
