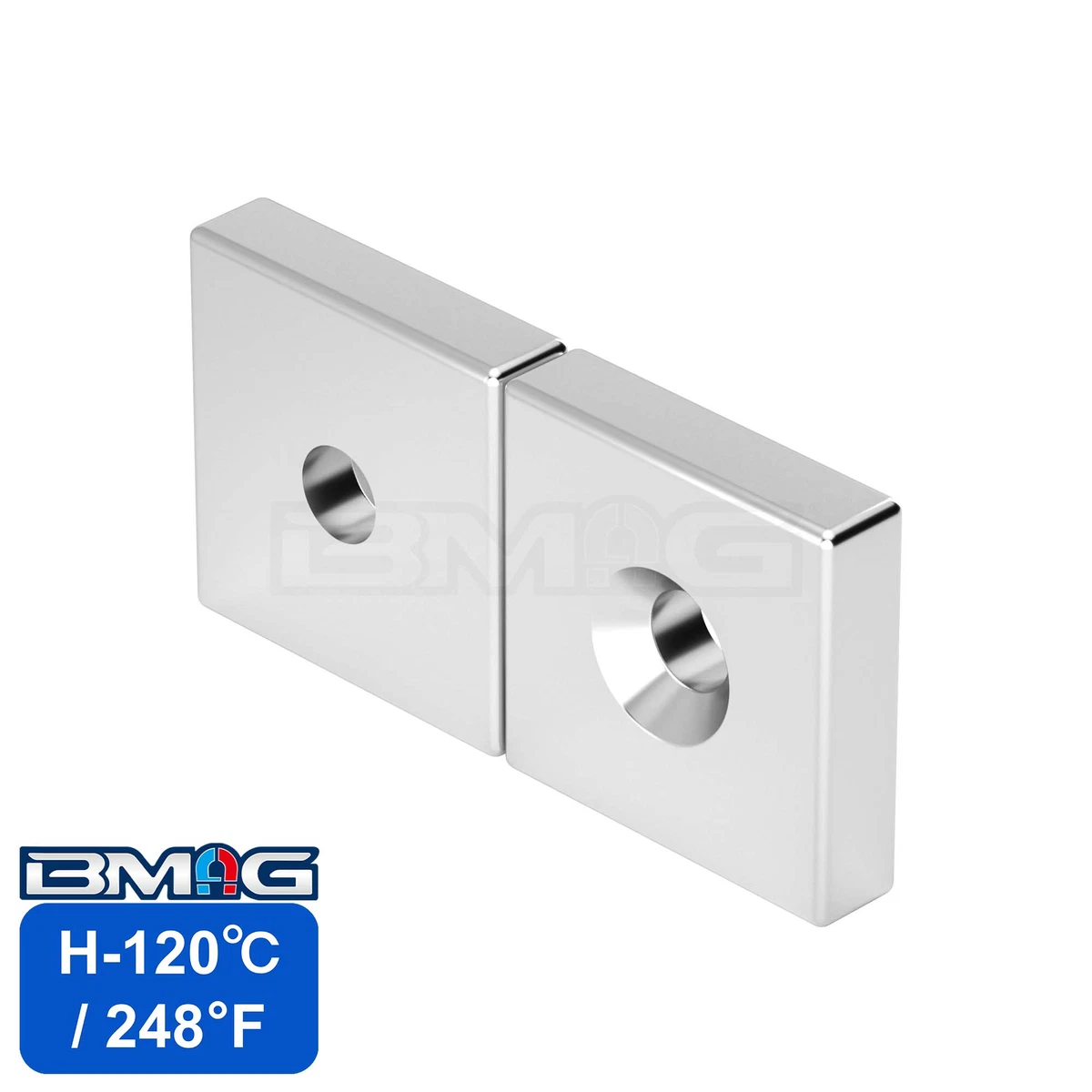

Countersunk Magnet H-120℃
| Material | NdFeB |
|---|---|
| Shape | Countersunk |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Magnet Introduction
Our Countersunk Magnet H is a high-strength screw-on magnet designed for fixtures exposed to 120°C heat. The H-grade material offers improved thermal stability over standard magnets, making it ideal for kitchen cabinetry and industrial panels.
BMAG ensures a 0.02mm precision tolerance on the countersink for a perfect flush mount. We assist customers in testing the tensile force and magnetic flux, verifying that the H material provides the reliable and secure hold needed for your specialized hardware and mounting tasks.
Available with customizable plating materials. Standard finishes are nickel-plated unless otherwise specified.
Countersunk Magnet H Dimension Diagram
Countersunk Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Countersunk |
| Coating | Nickel |
| Size | Customizable |
| Tolerances | 0.02mm/0.001" |
| Magnetization Direction | Customizable |
| Temperature |
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
