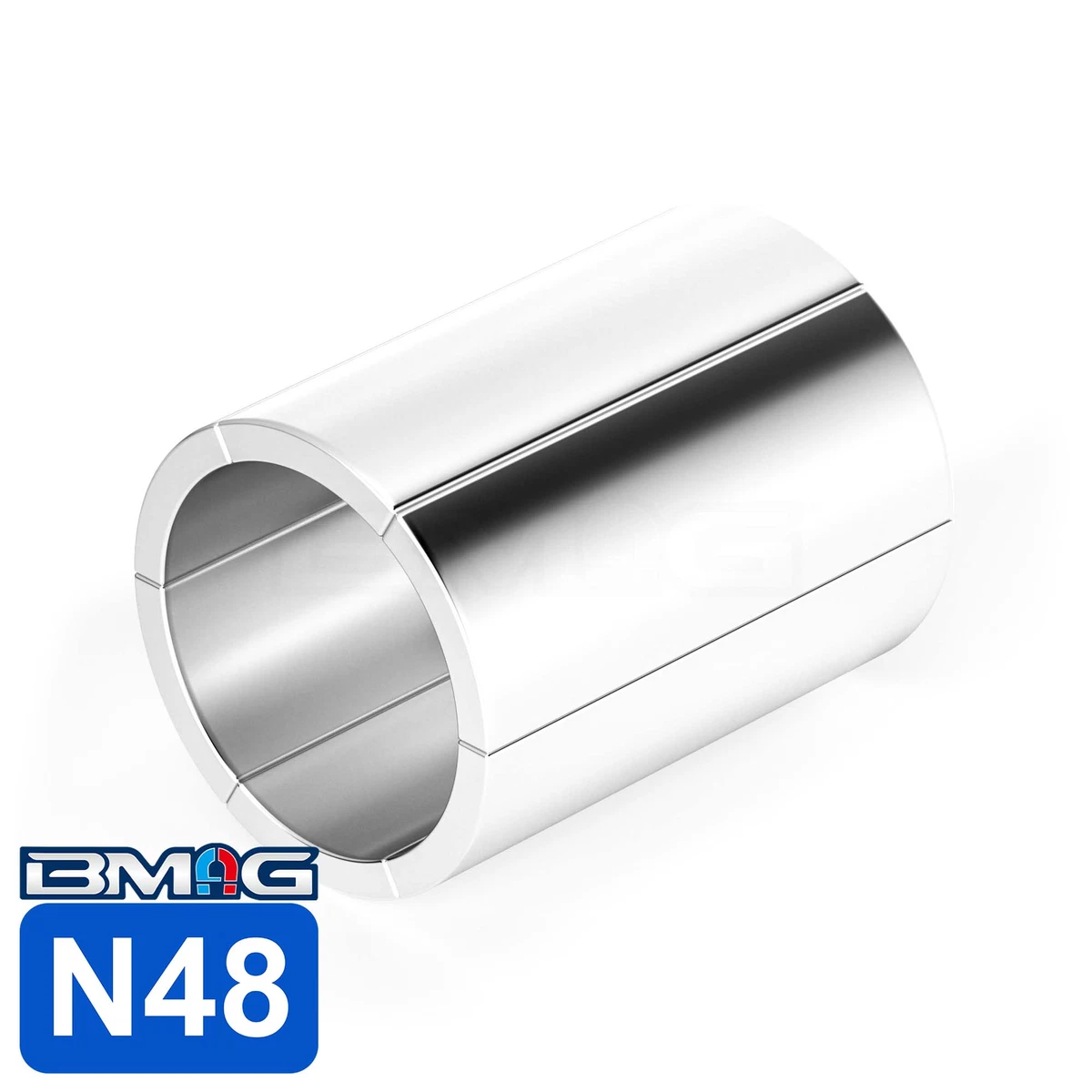

Arc Motor Magnet N48
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Grade | |
| BH Max | 48 MGOe |
| Br Max | 14,200 Gauss |
| Size | Customizable |
Product Description
Magnet Introduction
The BMAG Arc Motor Magnet N48 is at the leading edge of motor efficiency. The N48 grade provides an extremely high Br, allowing for maximum torque output in high-performance rotors. We maintain a 0.02mm tolerance on the arc geometry to ensure the smallest possible air gap.
BMAG can help customers test the magnetic flux and magnetic field, ensuring the N48 magnets provide a balanced and powerful field for peak motor performance. This is the choice for elite-level propulsion systems and high-torque industrial drives.
Arc Motor Magnet N48 Dimension Diagram
Arc Magnet Magnetization Direction
Magnet Specification
| Material | NdFeB |
|---|---|
| Shape | Arc |
| Grade | |
| BH Max | 48 MGOe |
| Br Max | 14,200 Gauss |
| Size | Customizable |
Magnet Calculator
Click to calculate your magnet’s Surface Field, Pull Force, and Weight instantly.
